Undercarriage system is often referred to as the “foundation of performance.” Whether it is an excavator, bulldozer, or crawler crane, the reliability of the track system determines the operational efficiency and the overall lifespan of the equipment. At Shengde Machinery, we understand that quality is not just a buzzword—it is a result of meticulous engineering and a disciplined assembly process. With 26 years of experience as a leading undercarriage parts factory, we are proud to take you inside our workshop to witness the precise assembly process of our track systems.
The Importance of Precision in Undercarriage Systems
An undercarriage operates in the harshest environments imaginable—mud, rocks, sand, and extreme temperatures. Every component, from the track rollers to the bimetal bushings, must work in perfect harmony. Even a deviation of a few millimeters during assembly can lead to uneven wear, premature failure, and costly downtime for the end-user. This is why our workshop emphasizes a “Precision-First” culture.
Phase 1: Preparation and Component Inspection
Before the assembly begins, every individual part undergoes a rigorous inspection. Our track rollers, idlers, and sprockets are forged from high-strength alloy steel and treated with advanced induction hardening. This ensures that the core of the metal remains tough while the surface achieves the necessary hardness to resist wear.
In our workshop, the assembly process starts with the cleaning of all components. Any microscopic dust or metal shavings left from the machining stage could compromise the floating seals or damage the bushings. By maintaining a clean environment and strictly following pre-assembly protocols, we lay the groundwork for a zero-defect product.
Phase 2: Integrating the Core Components

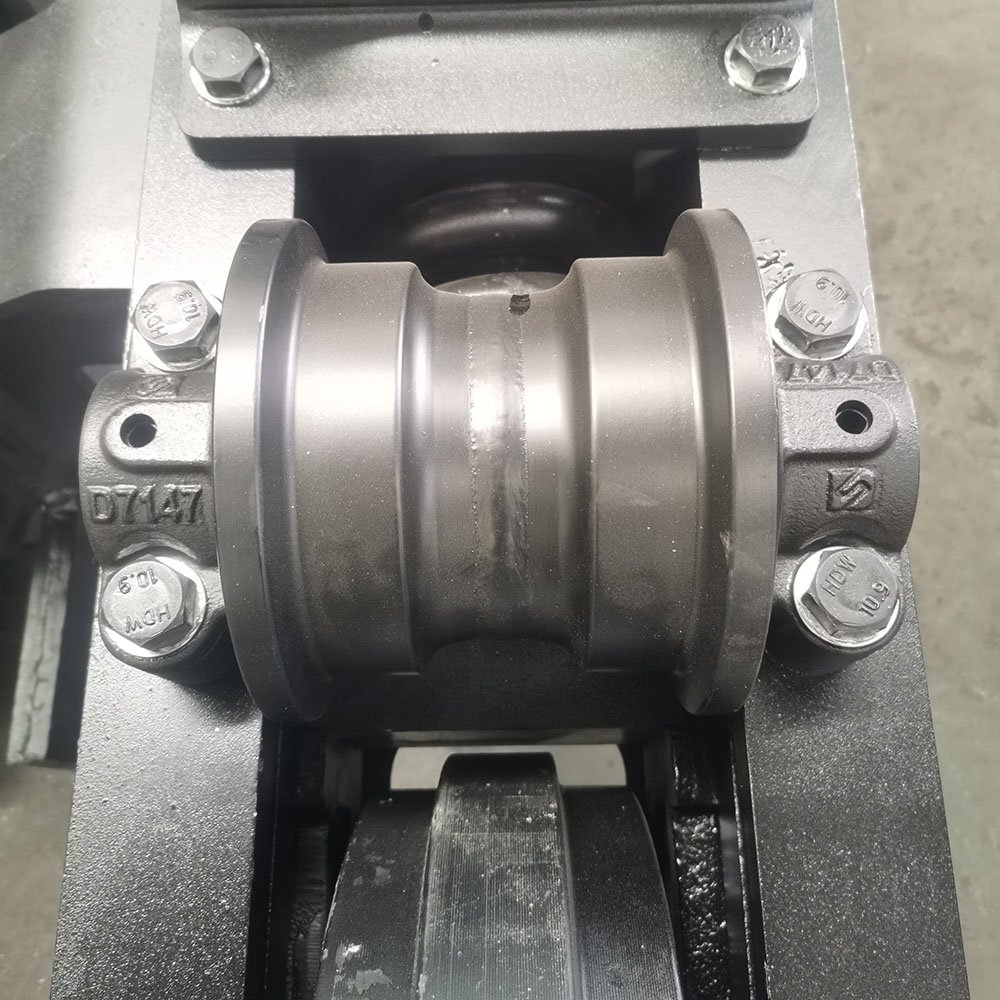

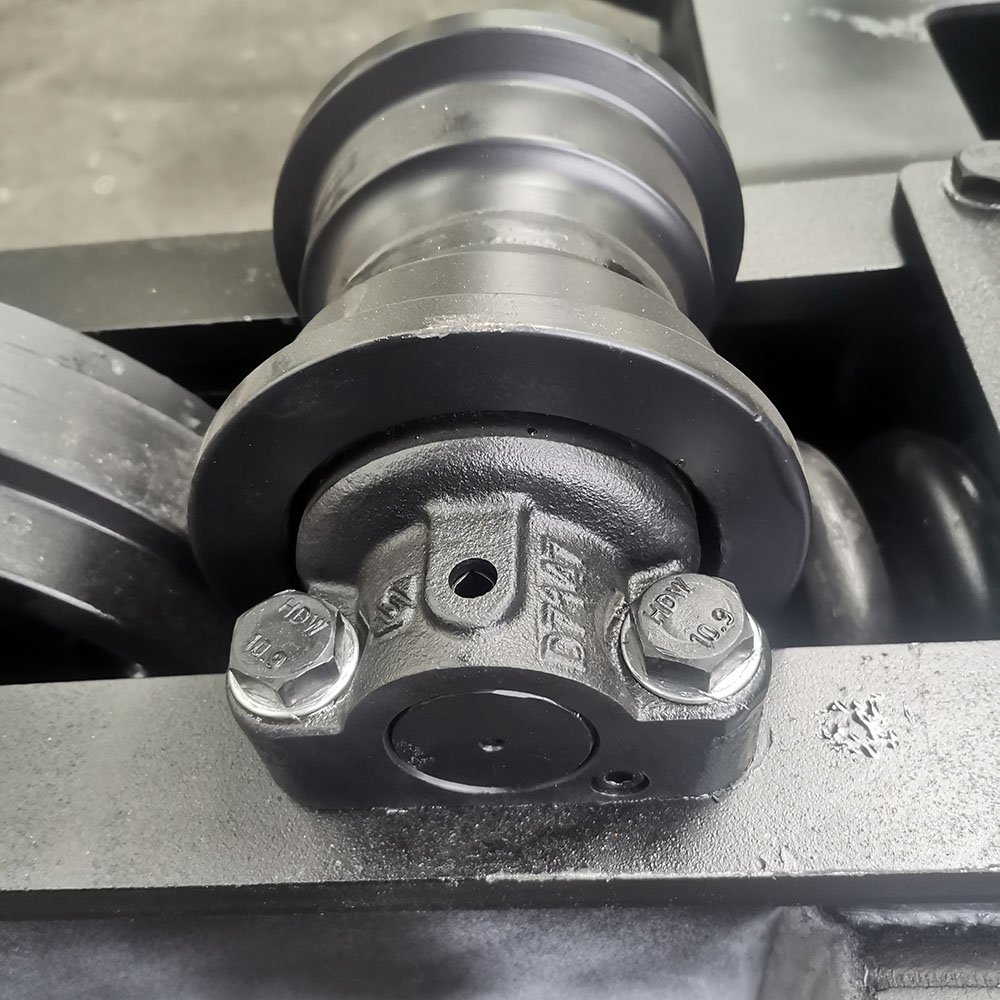

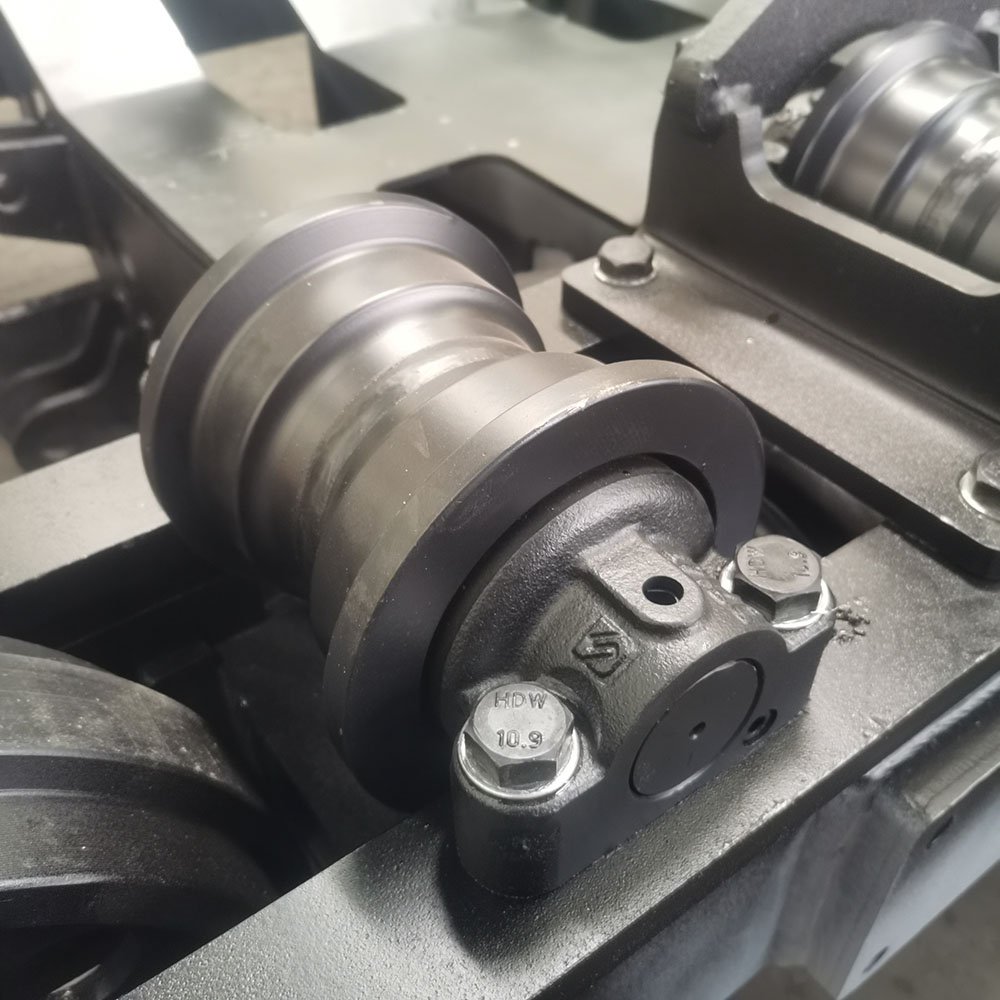

As seen in our workshop photos, the assembly focuses heavily on the integration of the internal components. One of the critical elements we prioritize is the installation of bimetal bushings. Unlike standard bushings, our bimetal variants offer superior load-bearing capacity and reduced friction, which are essential for heavy-duty excavators.
Alongside the bushings, the installation of floating seals is a high-precision task. The floating seal is the “guardian” of the roller; it keeps the lubrication in and the contaminants (mud and water) out. Our technicians use specialized tools to ensure that the seals are seated perfectly flat. A slight tilt during installation could lead to oil leakage, which is the number one cause of undercarriage failure in the field.
Phase 3: The Synergy of Human Expertise and Machinery
While we utilize modern machinery for heavy lifting and precision pressing, the “human touch” remains irreplaceable at Shengde Machinery. Our senior technicians, many of whom have over a decade of experience, oversee every step of the chassis assembling process.

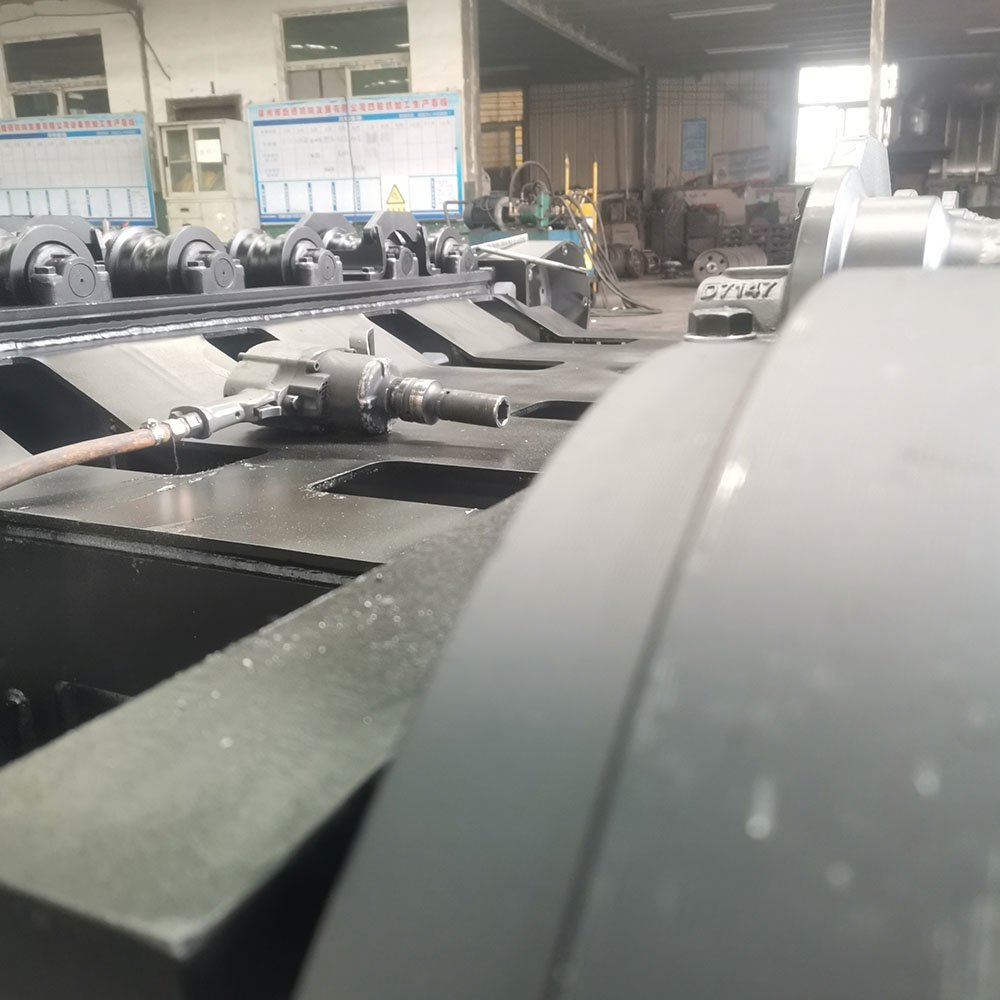

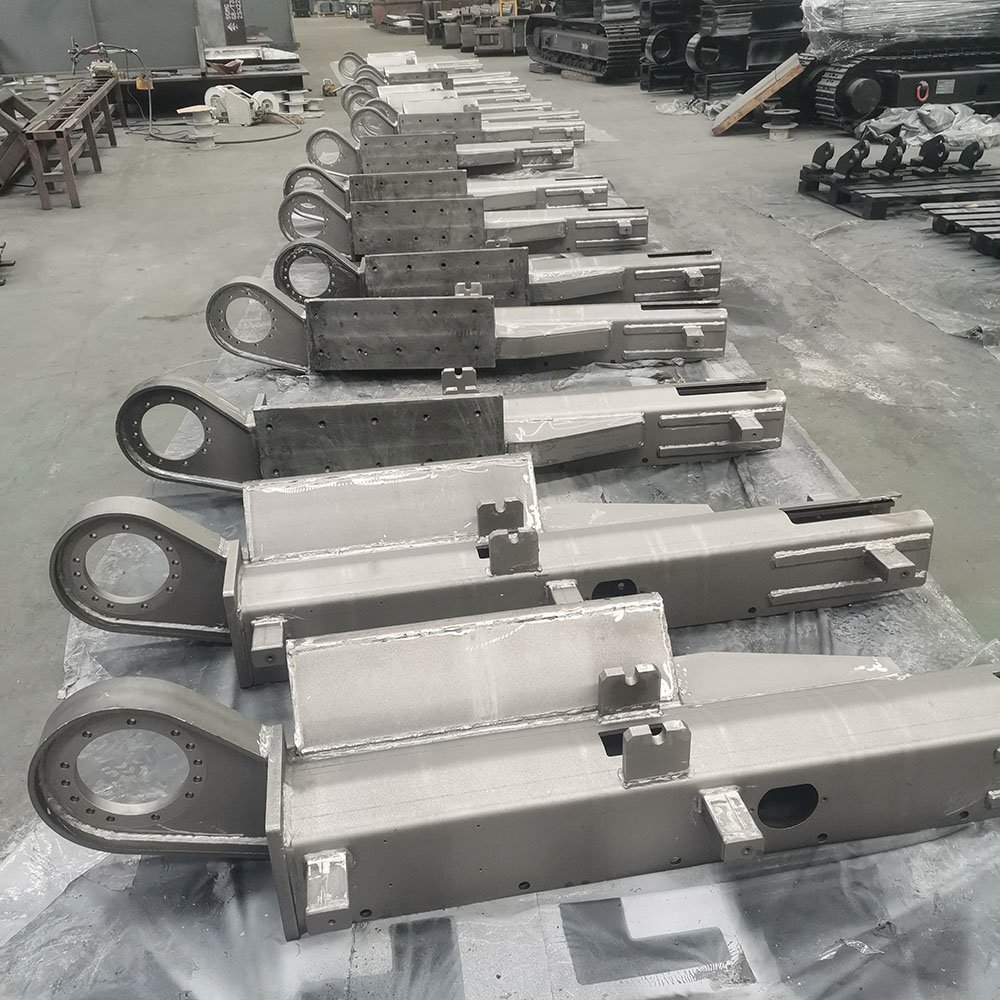

In the assembly of the track system, you can see the organized layout of our workshop. Each station is equipped with the necessary torque wrenches and hydraulic presses to ensure that every bolt and pin is secured to exact OEM specifications. This standardized workflow allows us to maintain high output without ever sacrificing the quality of a single unit.
Phase 4: Lubrication and Pressure Testing
Once the internal components are fitted, the system is filled with high-grade lubrication oil. We don’t just fill it; we measure the volume precisely to ensure the roller or idler is fully protected against heat and friction.
After lubrication, every unit undergoes a pressure leak test. We subject the assembly to air pressure to verify the integrity of the floating seals and the housing. If the unit can hold pressure without the slightest drop, it is deemed “leak-proof” and ready for the next stage. This step is crucial for guaranteeing that our customers receive parts that are ready for immediate, long-term service in demanding environments.
Phase 5: Final Inspection and Quality Assurance
The final stage of the workshop process involves a comprehensive check of the entire assembly. We verify the dimensions against the technical drawings to ensure a 100% precision fit. Whether the part is destined for a Komatsu, CAT, Volvo, or Shantui machine, the fitment must be identical to the original equipment.
Each assembly is then assigned a serial number for traceability. This commitment to accountability is why Shengde Machinery has remained a trusted partner for global clients for over two decades. We don’t just sell parts; we provide a “26-year quality guarantee” that our products will withstand the test of time.
Why Quality Assembly Matters to Your Business
For construction companies and fleet managers, the “Total Cost of Ownership” (TCO) is a vital metric. Cheap, poorly assembled undercarriage parts might save money upfront, but they result in frequent replacements and lost labor hours.
By choosing a track system assembled with the precision found in the Shengde workshop, you are investing in:
- Reduced Downtime: Our leak-proof seals and hardened bushings ensure your machines stay on the job longer.
- Lower Maintenance Costs: Standardized precision assembly leads to even wear across all components.
- Safety: A reliable track system is essential for the safety of the operator and the surrounding site.
Conclusion
The Precise Track System Assembly Process is a blend of high-quality materials, advanced heat treatment, and meticulous craftsmanship. At Shengde Machinery, we invite our global partners to see our workshop as a symbol of our dedication to the heavy machinery industry. From the first cleaning of a forging to the final pressure test of a completed chassis, every movement in our workshop is designed to ensure that your machinery performs at its peak.
For more information on our manufacturing processes or to request a quote for your specific undercarriage needs, visit our product pages or contact our technical support team today. Let us help you build a stronger foundation for your heavy equipment.
